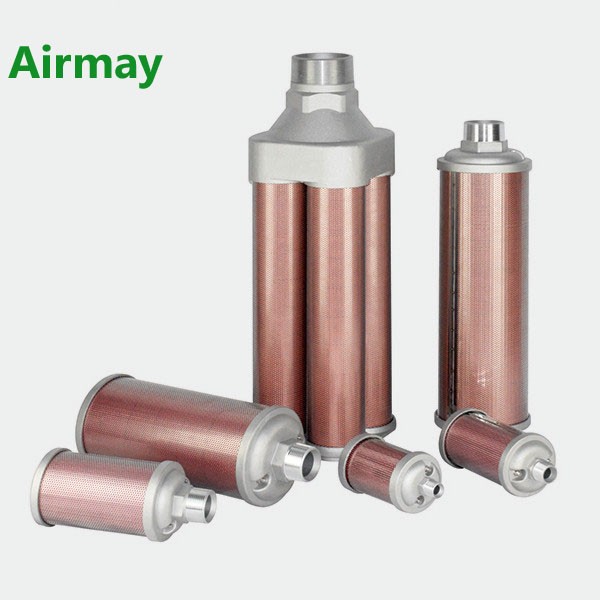

XY Series Mufflers.Silencer((Muffler)) is to prevent sound transmission while allowing air flow through the device.It is an important measure to eliminate aerodynamic noise. Muffler is mounted on the aerodynamic devices (such as blowers, compressors, boilers, exhaust port, generators, pumps and other equipment exhaust port noisy) air flow channel or into the exhaust system to reduce noise means.

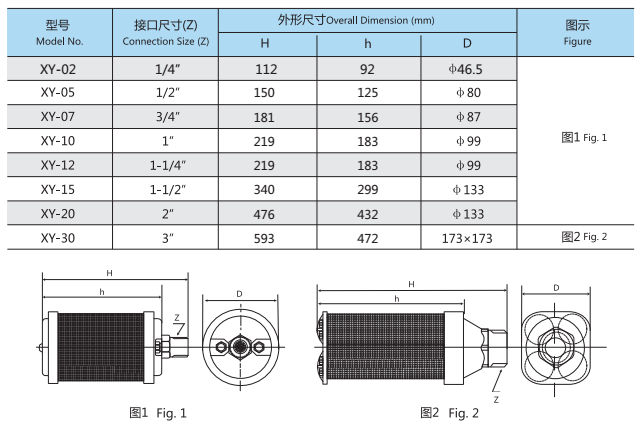

| Model | Interface Size | Dimensions （mm） | ||
| H | h | D | ||
| XY-05 | 1/2" | 150 | 125 | φ80 |
| XY-07 | 3/4" | 181 | 156 | φ87 |
| XY-10 | 1" | 219 | 183 | φ99 |
| XY-12 | 1 1/4" | 219 | 183 | φ99 |
| XY-15 | 1 1/2" | 340 | 299 | φ133 |
| XY-20 | 2“ | 476 | 432 | φ133 |
| XY-30 | 3“ | 593 | 472 | 173 x 173 |
| XY-40 | 4" | 597 | 480 | 198 x 198 |
| XY-60 | 6" | 790 | 619 | 275 x 275 |
